Specifications

  • Size-3 inch micro X frame toothpick class

  • 93mm motor to motor

  • Arms-4mm

  • Main Plate-1.5mm

  • bottom Plate-1.5mm

  • Camera Bracket-3mm

  • Camera bracket-7075 Aluminum

  • Xt30 mount-7075 Aluminum

  • Prop size-65mm-3”

  • FC size-16x16 and 25.5X25.5 AIO Whoop boards,

    Frame weight-38 grams

  • Supported cameras-DJI 04 and 14mm Nano cameras

  • Motor support-11xx-12xx

  • Optional 16×16 board only

Package Includes

  • 4× 4mm Carbon fiber replaceable arms

  • 1x 1.5mm Main plate with eight M2 press nuts installed

  • 1× 1.5mm Bottom plate

  • 1x 1.5mm Top plate

  • 2x 7075 Aluminum cage brackets

  • 1x 7075  XT30 mount

  • 3x M2×14mm Black aluminum cage standoffs

  • 4x M2×25mm CS Stack bolts

  • 8x M2×10mm CS bolts

  • 2x M2×12mm CS bolts

  • 2x M2×16mm CS bolts

  • 8x M2×6mm BH bolts

  • 2x M2×10mm BH bolts

  • 3x M2×16mm BH bolts

  • 6x M2 nuts

  • 3x M2×16mm Aluminum standoffs

  • 1x M3×2mm grub screw

  • 2x M2 Nylock nuts

  • 1x Dipole Antenna mount

  • 1x Foxeer MIcro Lollie pop and Polar Antenna Mount

  • 1x Dquad Lipo strap

  • 1x Lipo pad

  • 1x Micro Addiction Sticker

Key Features

  • High-heat pressed 3k Twill Weave Carbon Fiber

  • 7075 aircraft grade aluminum cage and xt30 mount

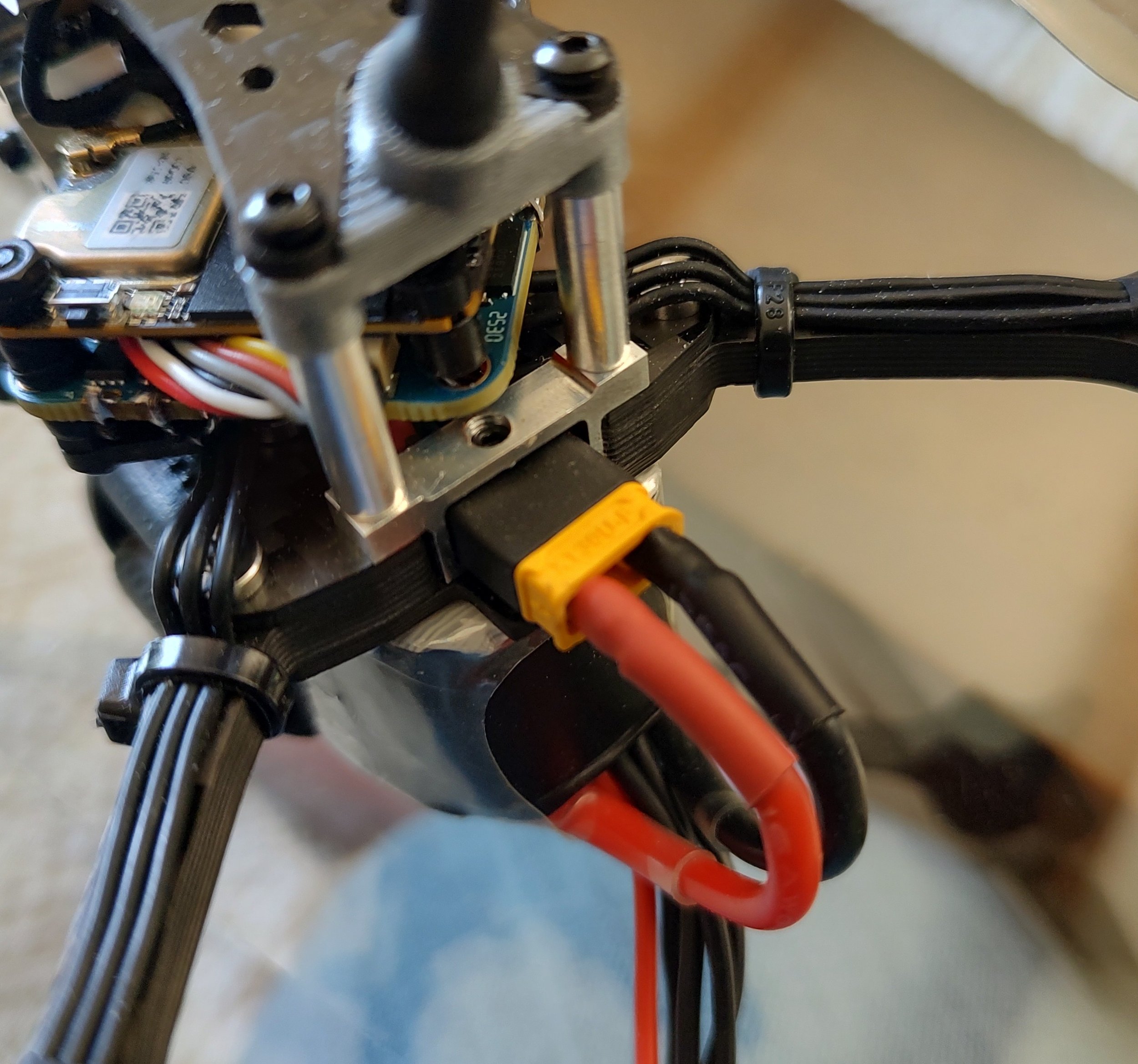

  • Integrated xt30 connector

  • Good air flow

  • very stiff frame easy to tune

  • Light and strong

  • Lipo strap passes through the frame

  • Includes XT30 connector
