Dquad is making a play into the Sub250 game. This year we are working on a new line of frames that are being designed by Dquad and tested by our very own team pilots. We are releasing quads that will fill that micro itch.

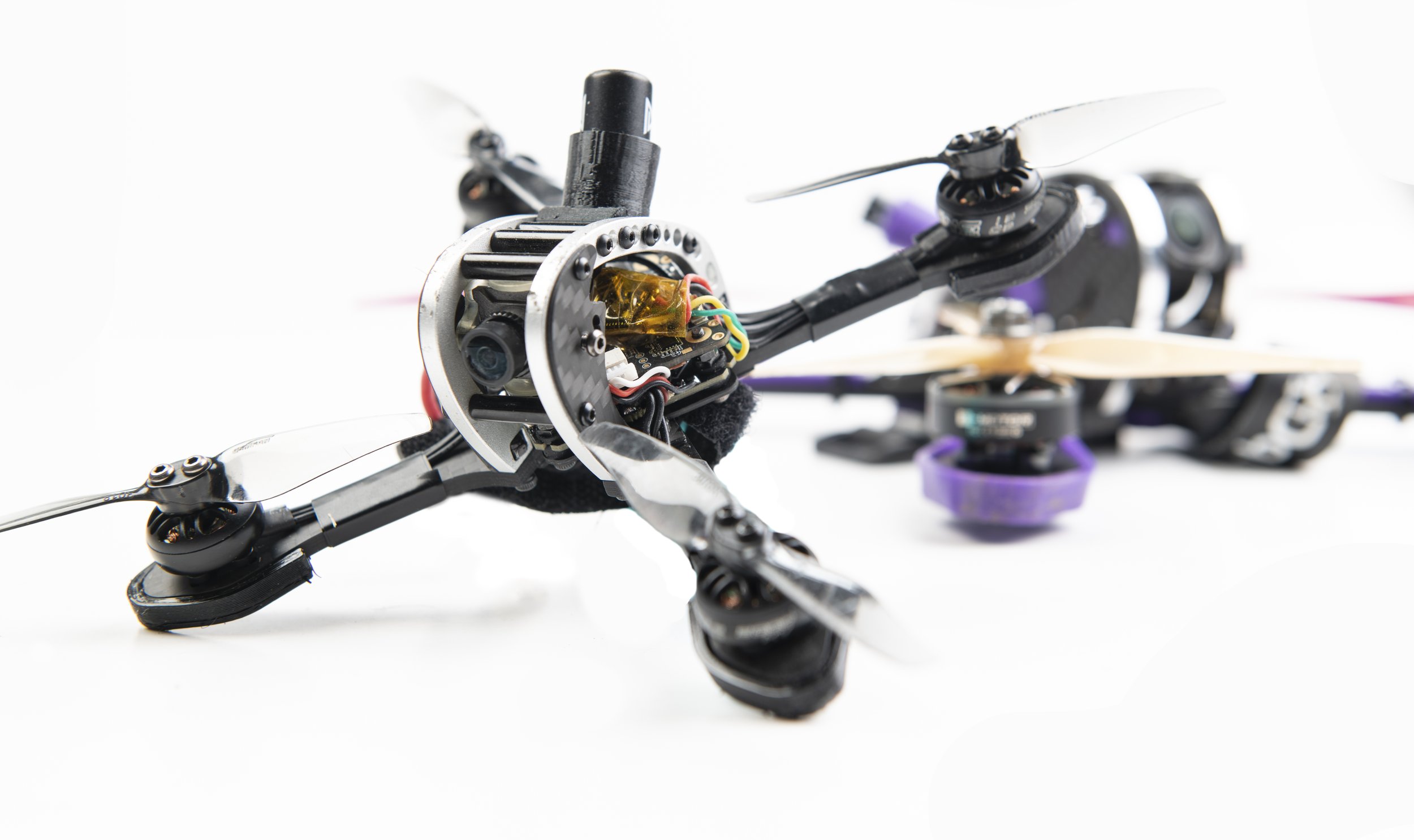

For our first release we took the dquad obsession we all know and love and shrunk it down to a toothpick style quad that you can now fly virtually anywhere!!

We left no stone unturned with this design and just like its big brother the Micro Obsession is sporting a 7075 aircraft grade aluminum roll cage and xt30 mount. And when combined with Armattan carbon fiber makes the Micro Obsession the strongest micro drone in existence!



Specifications

  • Size-3 inch micro X frame toothpick class

  • 93mm motor to motor

  • Arms-3x9mm

  • Main Plate-1.5mm

  • bottom Plate-1mm

  • Camera Plates-1mm

  • Cage bracket-7075 Aluminum

  • Xt30 mount-7075 Aluminum

  • Prop size-65mm-3”

  • FC size-16x16 stacks, AIO Whoop boards, Highly Recommend JHEMCU 16x16 GHF13AIO FC ESC

  • Frame weight-37 grams

  • Supported cameras-All 14mm Nano cameras and HDzero Nano Lite Camera

  • HD compatible-HDzero Whoop Lite and Walksnail 1s Whoop VTX

  • Motor support-11xx-12xx


Key features

  • Armattan high-heat pressed 3k Twill Weave Carbon Fiber

  • 7075 aircraft grade aluminum cage and xt30 mount

  • Integrated xt30 connector

  • Good air flow

  • very stiff frame easy to tune

  • Hd compatible

  • available in 4 colors

  • Strong as a micro tank!


Dquad Pilot Brad Hofbauer’s Micro Obsession flight DVR with a Walksnail Avatar 1s VTX onboard.

Walksnail Avatar HD Mini 1S Lite Kit and a Ghost Atto RX. Adapters available for purchase and STL file free download.

Package includes

  • 4x 3mm Carbon fiber replaceable arms

  • 1x 1.5mm Main plate with four M2.5 press nuts installed

  • 1x 1mm Bottom plate

  • 2x 1mm Camera plates

  • 2x 7075 Aluminum cage brackets

  • 1x 7075  XT30 mount

  • 7x M2x15mm Black aluminum cage standoffs

  • 4x M2x22mm Stack bolts

  • 14x M2x6mm Button head bolts

  • 2x M2x8mm Button head bolts

  • 2x M2x10mm Button head bolts

  • 1x Micro Foxeer Lollipop TPU mount

  • 1x XT30 Connector

  • 1x Lipo pad

  • 1x Small dquad lipo strap

  • 1x Micro Obsession sticker
