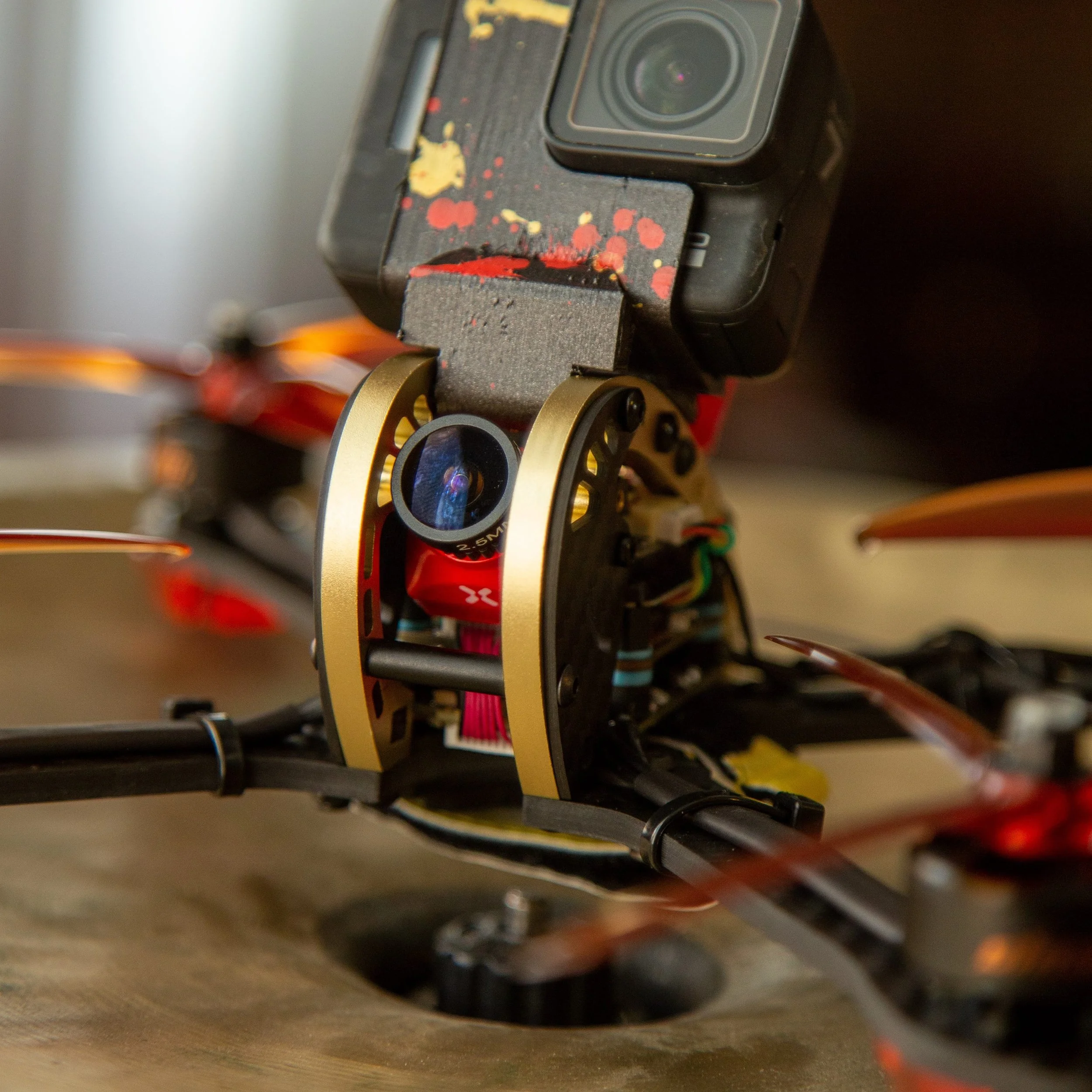

Since its release in 2017 the Dquad Obsession has gained worldwide fame and is loved throughout the FPV community. Thanks to the carbon fiber and aluminum construction the Obsession is a Strong lightweight X quad that is suitable for indoor and outdoor, sport class race and freestyle. It is suitable for advanced, intermediate and beginner pilots. This frame is easy to build and to service when needed. The frame has 4 swappable 4mm carbon arms that come together in the middle without any movement. These 4 arms are held together with a 2.0mm carbon bottom plate and a 2.0mm identical Top plate. The arms are also replaceable without stack bolt removal ensuring quick hassle free arm replacement. It's also possible to build it with the included 2.0mm thick PDB which makes it really nice. The PDB is not one with lots of features on it. We like to keep this clean and simple therefore it has only the + and – on it for the esc’s, power connector, and extra’s. For instance you can use it to power single escs, or you can tap off any + and - to power your AIO. On top of the PDB or top plate is enough room to double stack your hardware, like FC, 4in1 esc, VTX, RX, and so on. The xt60 connector is held in place with a 7075 Aluminum mount which prevents dangling power wires and ensures clean builds. Then we have our 7075 aircraft grade aluminum roll cage that has two 1.5mm carbon side plates that holds the FPV cam in place. On the backside of the roll cage you will find a 2mm carbon VTX antenna mount that is installed in a 45 degree angle which provides the best signal strength and protects the antenna in the event of a crash. The roll cage also comes equipped with a rigid HD camera mount system which allows for a wide array of Gopro mount options.

Key features

  • Armattan high-heat pressed 3k Twill Weave Carbon Fiber

  • 7075 aircraft grade aluminum cage and xt60 mount

  • Integrated Dquad PDB and xt60 connector

  • Good air flow

  • HD compatible

  • Very stiff frame easy to tune

  • Arms replaceable without the need to remove the stack bolts

  • Stack bolt heads are hidden within the arms.



Specifications

  • 210mm size 5” true X frame

  • Frame weight 105 grams

  • Supported cameras: All Micro cameras, DJI 03 camera with DJI 03 camera kit. Vista and Walksnail camera with adapter

  • Supports 30x30 and 20x20 stacks

Package includes

  •  4x 4mm carbon arms

  •  2x 2.0mm Carbon bottom/top plate

  •  1x 2mm VTX antenna mount

  •  2x 1.5mm FPV side plate

  •  2 x 7075 Aircraft Aluminium roll cage Bracket

  •  1x 7075 Aluminum XT60 connector mount

  •  1x 2.0mm Dquad PDB

  •  5x M3x19mm cage bracket standoffs

  •  14x M3x10mm button head bolts

  •  10x M3x12mm button head bolts

  •  3x M3x14mm button head bolts

  •  10x M3 Nylock nuts

  •  4x 25mm Nylon fc bolts and nuts

  •  4x 4mm Aluminum FC spacer

  •  1x xt60 Connector(black)

  •  1x Lipo pad

  •  1x Dquad lipo strap

  •  1x Obsession sticker

  • 2x Micro camera mounts


Dquad Pilot Janson Luedtke Obsession Flight footage.

Optional DJI 03 kit

  • 6x M3x20mm standoffs

  • 2x DJI 03 camera mount inserts

  • 1x 03 air unit mount
